Surface coating in XXL

The DuoFlex Spray 2.500 automatic surface spraying machine

3-layer panels in full format with a width of 2.50 m are best used statically as ceiling elements. But how do you get the 2.50 m wide panels coated easily and cheaply? If you want to get rid of annoying and time-consuming manual work and achieve perfect quality really quickly, then the DuoFlex Spray 2.500 is ready for you.

Color change in just 3min
Perfectly coat up to 500 m² per hour
A homogeneous certifiable process creates safety
On request, including automatic sanding machine, mechanization and subsequent drying

Bruhn HVT has 4.85 out of 5 stars | 23 reviews on ProvenExpert.com

Get personal advice

Short description DuoFlex Spray 2.500

The DuoFlex Spray 2.500 works with two completely separately controlled traverses, on which a total of four guns per circuit ensure uniform coating. A scanner in the infeed area detects where panels or other workpieces are lying and coats cleanly around them to save material. The shortest component length is around 28 cm, with no upper limit.

When is manual work in this area uneconomical? As a rule of thumb, whenever you spend more than €2,000 per month on employee hours for the coating of boards, KVH and glulam or pay a correspondingly high contribution to external suppliers / service providers for the coating. From this order of magnitude, we can generally show you economically viable alternatives, which are also visually impressive thanks to a much more even application and technically impressive thanks to pre-sanding. Be at the forefront of this development - it will give you a strong competitive advantage!

Technical data

Property	Specification
Processing dimensions	Panels, KVH / BSH up to 2,500 x 200 mm
Machine dimensions	2,300 x 4,350 mm
Space requirement length	Machine depth 2,300 mm + 2 times the wood length + protective zone of 1 m each + other components such as sanding machine

Good to know

We offer a comprehensive modular system for expanding this machine, which in addition to the conveyor belts also includes sanding machines, dust extractors, drying systems and mechanization components.

Application areas

Transparent, translucent and opaque coatings possible
Transport protection for wood - or permanent decorative wood protection
Smooth and profiled wood, even cut-outs can be coated

What our customers say

Customer testimonials

Schwarz weiß Porträt Philipp Harbort

"We have been using Ceetec coaters for over 30 years. Our current IP250, which we have been using for almost 10 years, runs every day and produces flawless quality, which our customers appreciate. The support for questions and replacement parts runs flawlessly via Bruhn, and we receive quick and uncomplicated help when something goes wrong. Machine and service together are exactly the package we need - so full recommendation!"

Philipp Harbort, Managing Director,
HOYA Holz

In May 2020, I purchased a Ceetec DuoFlex flatbed sprayer. Martin Bruhn was my direct contact for the offer, visits to other companies, installation of the machine and also accompanied me after the acceptance test. There was a problem with a Beckhoff motor and the Festool control system. Martin Bruhn/Ceetec rectified both very quickly and without any problems. I can highly recommend Martin Bruhn and the company Ceetec. They work with high-quality components and are also there for you after the invoice has been paid. Unfortunately, I also know other companies. The machine can also be viewed at my premises. Please make an appointment via Martin Bruhn.

Frieder Braun, Managing Director
Braun Fenster GmbH

The spraying machine is incredibly effective and I achieve high quality from start to finish of the batch. It's also an exciting story, especially for the younger employees, because they are better at using touchscreens than their own fingers. The advice was great, the system is of very high quality. All in all, even better than expected.

Felix R., Zurich
Master carpenter

207 satisfied customers speak for themselves. Your satisfaction is our top priority!

Video insights

Everything you need to know about the DuoFlex Spray

Welche Komponenten gibt es zum Automaten dazu?

Wie lange dauert eine tägliche Wartung?

Wie funktioniert unsere Lackieranlage?

Wie lange dauert ein Farbwechsel?

Wie viel Platz benötigt ein Automat?

Wie funktioniert unsere Lackieranlage?

Convince yourself

Application examples

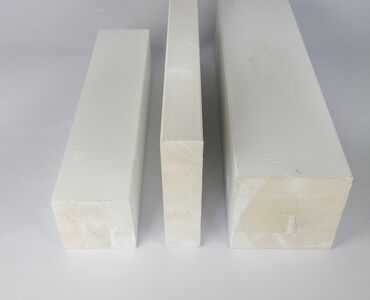

BSH coating with DuoFlex Spray 1.300

Frequently asked questions about the Ceetec DuoFlexSpray 2500

Can DuoFlex Spray coat 100% of all geometries without any rework?

Most profiles can be coated fully automatically, as can panels, including most milled cutouts. However, a small percentage of less common profiles may remain that cannot be automated economically. Our goal is to find the optimal cost-effective solution for you; let's discuss this together.

How long does a color change or cleaning take?

A color change takes just 3 minutes – from black to white! Cleaning takes between 3 and 20 minutes, depending on previous use. The DuoFlex Spray meets all technical requirements (material selection, accessibility, operating concept) for minimal downtime. Furthermore, you receive comprehensive, personalized training. And that's not all: you also receive an online course that keeps your employees up-to-date and allows you to quickly train new staff.

Are there also more compact machines?

Yes. The DuoFlex Spray 1300 is suitable if you want to coat panels up to a maximum width of 1300 mm. Let's discuss which machine best and most economically meets your specific requirements.

What other advantages does the DuoFlex offer?

It is part of our large modular system and can be expanded with grinding machines, preheating tunnels, cleaning systems, drying channels and mechanization including KUKA robots to create a line that is perfectly suited to your needs.

What is the current delivery time?

We currently have a lead time of at least four months. The smaller DuoFlex Spray 1300 is sometimes in stock. So, if you already have larger quantities to coat and need help as soon as possible, we could provide you with a smaller machine as a temporary solution until the larger machine arrives, which will then cover a much wider range of applications.

How much space does the machine require?

The machine itself is only 2.40 m deep and 3.50 m wide. Depending on the local conditions, it can be positioned with either a narrow or wide side against a wall (we would be happy to explain this in person). The roller conveyors or transport belts in front of and behind the machine can be mounted on casters and moved out of the way if space is needed elsewhere. The transport belts should be at least two-thirds the length of the components being processed.

The DNA of Bruhn Coating Systems

Your advantage is the focus.

"keep it simple" - permanently easy to use.

Plug-and-play solutions for short installation durations.

perfect service - online and offline.

Family owned company - personally there for you.

Your customers are increasingly demanding a finished coated surface for the boards and structural timbers supplied. The big players on the market have already reacted and invested in sophisticated coating technology.If you want to be independent and flexible in the future, you need to be able to coat. The technology required for this is now far less complex, easy to use and no longer requires huge investments in robotic coating. For you as a medium-sized company, there is also a high-performance alternative that makes you independent of others and usefully supplements your own production and thus preserves your jobs. We know that your investment goes far beyond the purchase - it's about long-term productivity, environmentally conscious work and the satisfaction of your customers. Rely on our expertise, because we don't just offer systems, but partnerships that are geared towards your success.

Yours sincerely

Certified technical business administrator (IHK)

Excellence in paintwork starts here:

Market leader

... appreciated in our Scandinavian homeland, and increasingly by customers from all over the world

High quality

Precise craftsmanship from our Danish manufactory
German premium electronics for stable processes

Fast

Plug&play: assembly of large lines within a few days
Coating at up to 7 m/min
Express service on site

Economic

Color change from 3 min
Profile change in seconds thanks to CNC programs
Lowest total costs

Innovative

New concepts that you can only get from us
Cooperation with paint manufacturers for market-leading technology

Four proven steps to your
custom-made coating system

1: Needs analysis

We visit you, listen and discuss your current situation and your plans for the future.

2: Concept development

Based on your expectations for the future, we will create a perfectly fitting concept that will inspire you.

3: Your go-ahead

If everything fits and we have tested everything together in the technical center in advance, you place the order with us.

4: Professional implementation

In the end, the on-site installation is extremely fast, our training is at the highest level, and when we leave, your system is up and running.

Request individual advice

Good to know

We have a well-equipped technical center in the Danish factory in 5500 Middelfart. Once we know roughly what you need, we can put it through its paces together. We will be happy to pick you up at the airport (the nearest one is Billund or Copenhagen) and organize everything for you. You can look forward to a successful appointment - we will ensure top results and a Scandinavian feel-good atmosphere in our regular hotel right on the waterfront.

With this in mind, let yourself be pleasantly surprised!
